Digital Manifold Superheat Without Temperature Clamps Uk

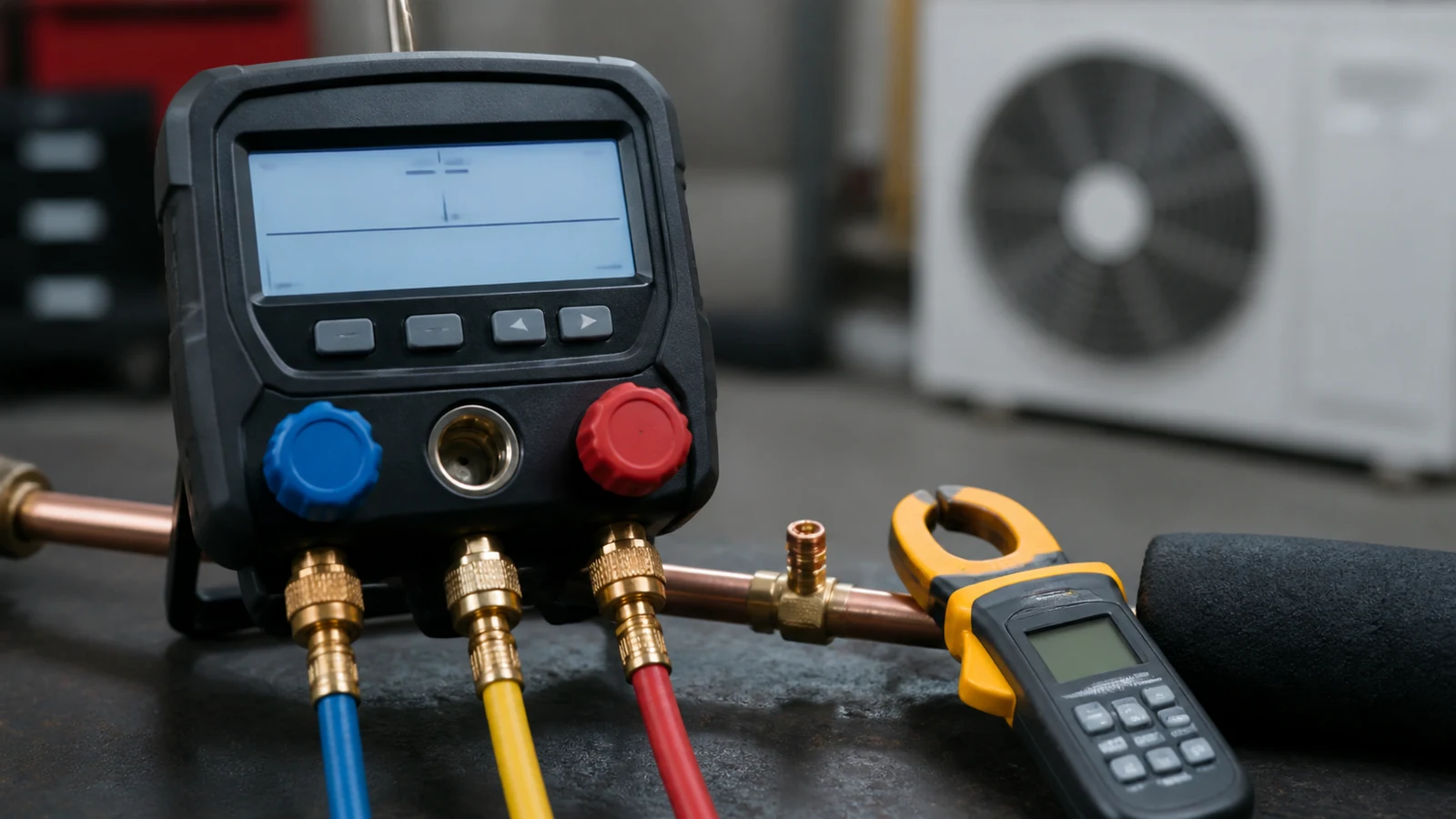

Direct answer: without a pipe temperature clamp or a separate accurate thermometer on the correct line, a digital manifold can show pressure and saturation temperature after refrigerant selection, but it cannot prove true superheat or subcooling by itself.
This is a common misunderstanding for technicians moving from PT charts to digital screens. The screen has removed the chart lookup, not the need to measure actual pipe temperature.
Annotated example: what each reading means
| Step | Reading | What it can tell you | What it cannot tell you alone |
|---|---|---|---|
| 1 | Select refrigerant profile | The pressure-to-saturation calculation uses the right refrigerant data. | It cannot fix a wrong profile selection. |
| 2 | Read suction and discharge pressure | You can compare operating pressures with manufacturer guidance. | Pressure alone is not a universal charge verdict. |
| 3 | Read saturation temperature | You no longer need to manually look up the PT value. | It is not the actual pipe surface temperature. |
| 4 | Add clamp or thermometer | Now you have actual line temperature for SH/SC maths or supported auto calculation. | Without this, the calculation is incomplete. |
Why clamps matter
Testo UK analogue versus digital manifold explainer explains that digital manifolds calculate superheat and subcooling when temperature clamps measure line temperatures. The SRW manifold gauge buying guide also treats automatic superheat and subcooling as features of digital manifolds where the required measurement inputs are available.
So if a product page only confirms pressure and saturation temperature, treat that as a pressure/PT workflow. Do not silently upgrade it in your head into an automatic SH/SC workflow.
What you can still do with pressure and saturation temperature
You can reduce chart mistakes, see the pressure-to-temperature relationship quickly, and record clearer pressure observations. That is useful for diagnosis and learning. It is not enough for jobs that demand documented superheat/subcooling values, manufacturer-specific charging targets or data logs.
Stop conditions
Stop and add the right temperature measurement if the job sheet asks for SH/SC, if you are commissioning a system under manufacturer instructions, if the charge method depends on actual line temperature, or if readings do not make sense. Do not publish or hand over numeric SH/SC values from saturation temperature alone.
Buying implication
If every job you do requires logged SH/SC, buy a clamp-capable kit or pair the manifold with a suitable thermometer. If your current need is clearer pressure and saturation-temperature reading, a simpler digital manifold may still be useful, but be honest about the boundary.
